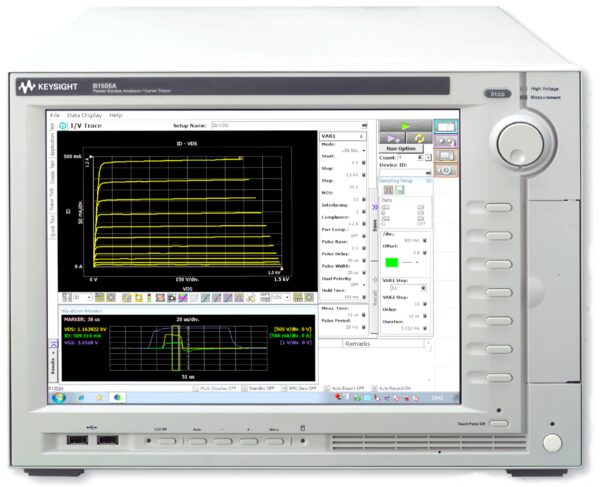

Specifications : B1505A Keysight / Agilent Configurable advanced curve tracer 1500 A 10 KV depending on the modules used : Maximum test voltage up to 10 KV/1500 A, Power up to 22.5 KW, Range of Plug-In offered: B1510A high power, up to 200 V, 1 A, 10 fA current resolution, B1511B medium power, up to 100 V, 100 mA, 10 fA current resolution, B1512A high current, 20 A/20 V pulsed; 1 A/40 V (DC), 2 slots, maximum, B1513C high voltage, 1500 V/8 mA; 3000 V/4 mA; (pulsed & DC), B1514A medium current, 1 A/30 V (pulsed); 100 mA/30 V (DC), B1520A multi-frequency capacitance measurements, 1 kHz to 5 MHz, 0 to ±25 V, 0 to ±3000 V, use of MFCMU internal DC bias, N1266A expander B1513B B1514A B1512A high voltage and medium current configuration, ±1500 V / 2.5 A (pulsed), ±2200 V/ 1.1 A (pulsed), N1265A expander/fixture and 2 B1514A, B1512A, very high current configuration, 1500 A/ 60 V (pulsed), 22.5 kW peak power, ±500 A / 60 V (pulsed), 7.5 kW peak power, N1268A ultra high voltage expander with 2 B1514A or combination of B1512A and B1514A, 10 kV/10 mA (DC), 10 kV/ 20 mA (pulsed), LAN, USB, GP-IB remote control, Large high definition TFT touch screen. Price of a ReNEWed® configuration with extension Plug-In, please contact us. The prices are given as an indication.
